Linkbar Single Touch Fridge R290 Under-Counter Refrigeration Module
Linkbar Single Touch Fridge R290 Under-Counter Refrigeration Module
Availability： Lead time provided upon request
Model No.： XJ-1310320
Model: XJ-1310320
Dimensions: 320 × 500 × 668 mm (L × W × H)
Temperature range: 2–6°C
Capacity: 20 L
Refrigerant: R290
Cooling: air-cooled
Rated power: 140 W
Rated current: 0.9 A
Voltage / frequency: 220V / 50–60Hz
Weight: 28.5 kg
Installation: under-counter, designed to integrate with the Linkbar Single Touch series
Refrigeration Below. A Clear Bar Above.

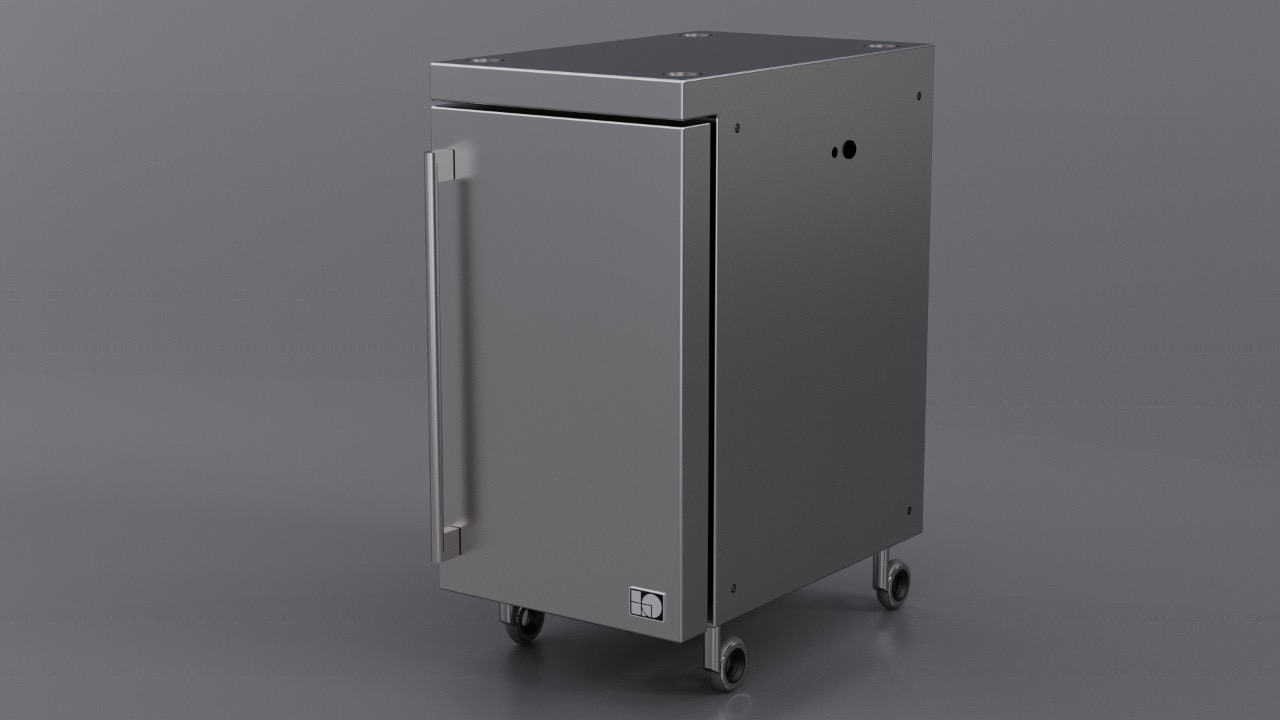

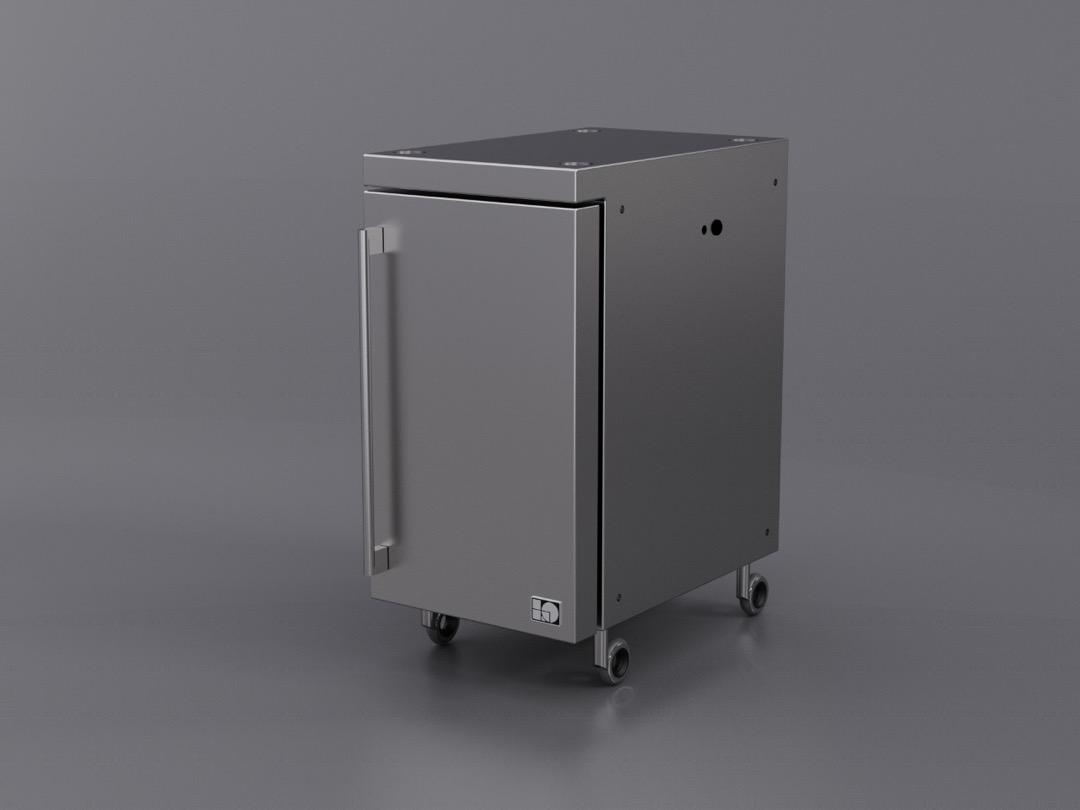

Linkbar Single Touch Fridge R290 is the under-counter refrigeration module designed for the Single Touch series. Its compact 320 × 500 mm footprint can be planned alongside the coffee or milk host, concentrating chilled storage, dispensing and replenishment within one workstation while keeping the counter clear for service.
2–6°C Storage. 20 L Capacity.
The module operates from 2 to 6°C with a 20 L capacity. Overall dimensions are 320 × 500 × 668 mm (L × W × H), providing dedicated under-counter chilled storage for a Single Touch installation.
R290 Refrigerant. Air-Cooled.
The air-cooled system uses R290 refrigerant, with rated power of 140 W and rated current of 0.9 A on a 220V / 50–60Hz supply.
Plan It with Coffee or Milk

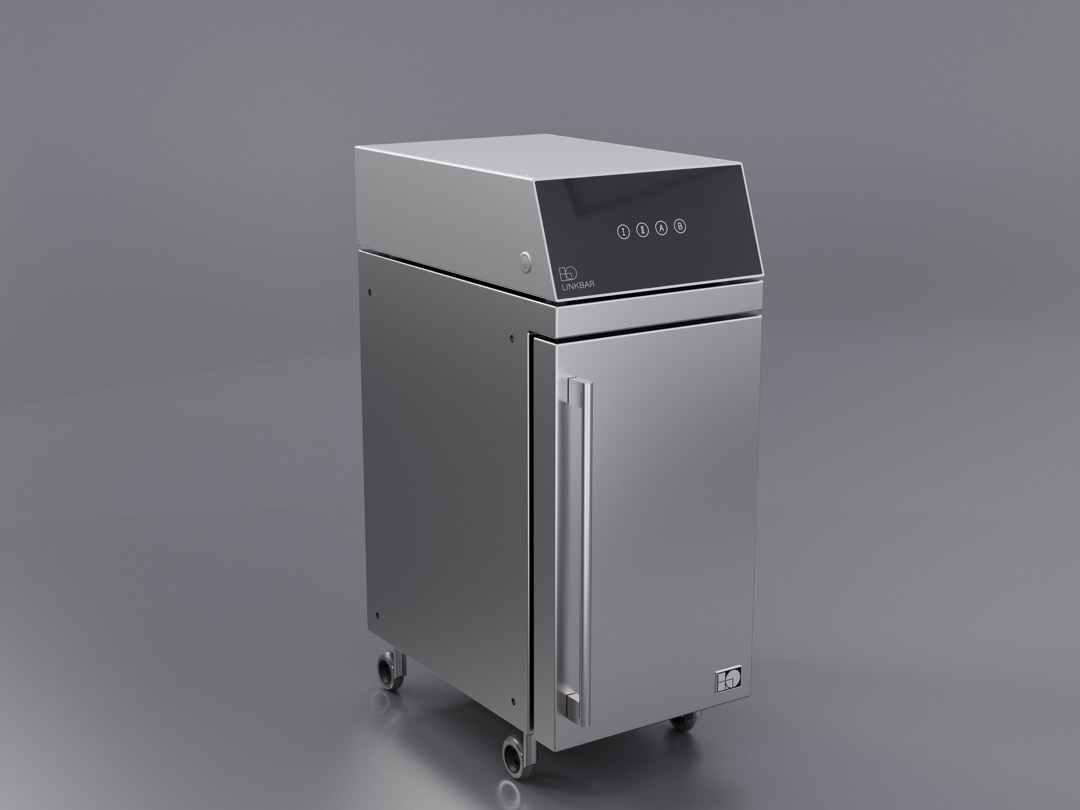

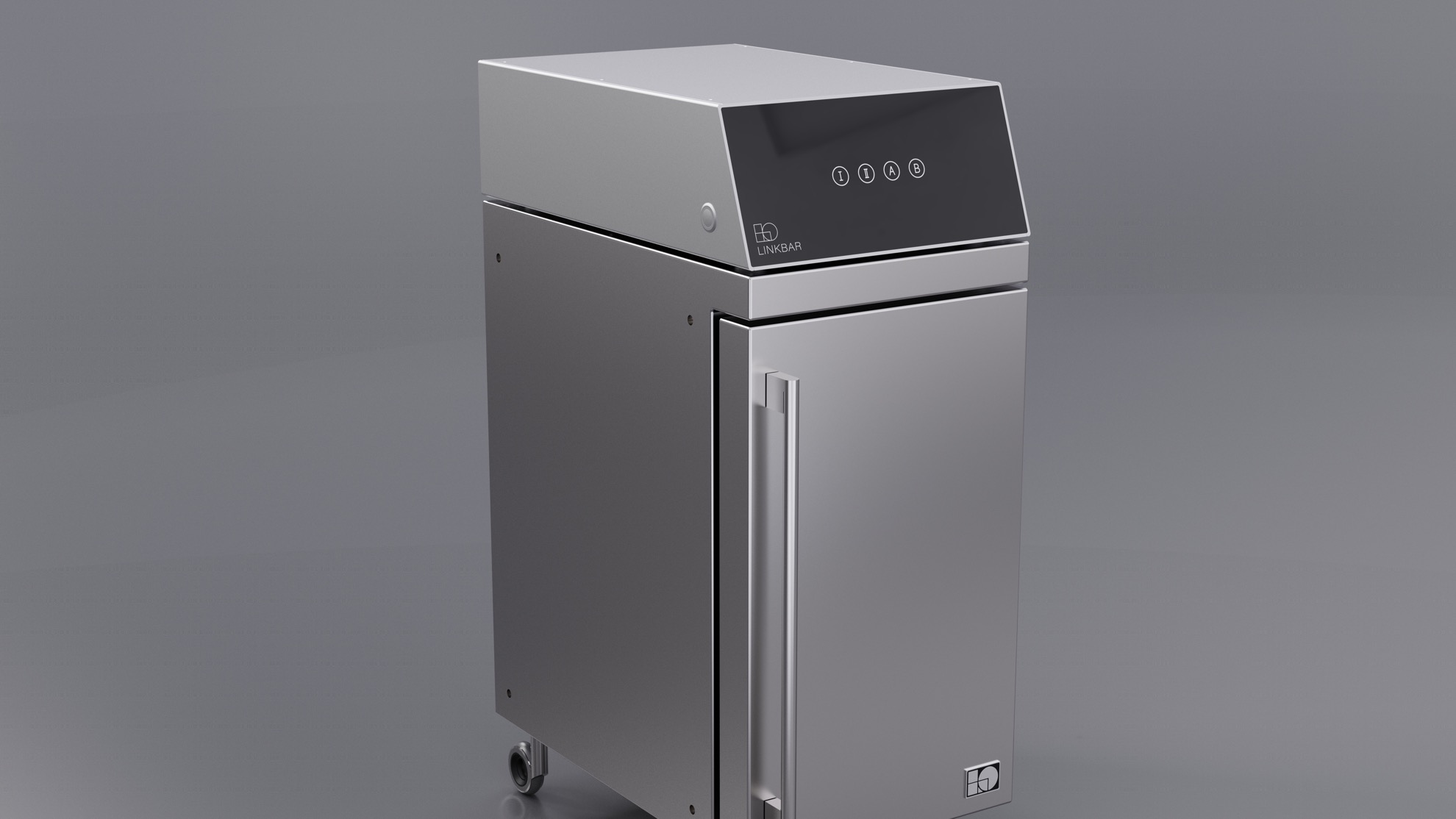

Pair it with Linkbar Single Touch Coffee or Linkbar Single Touch Milk. Equipment position, power, services and maintenance access can be coordinated together at the drawing stage.
